Air conditioners in attics: leaks make a big mess

Last week’s blog post about inspecting air conditioners was all about traditional air conditioners, with an evaporator coil sitting on top of a furnace in a basement.  With these systems, condensate leaks can lead to a mess, but it’s nothing compared to a condensate leak that occurs at an air conditioner in an attic, or really any place that has finished space below.

Damage in attic from condensate leak

I came across a leaking unit a couple of weeks ago, and found moisture all throughout the first floor and basement ceilings.  The dark blue spots in the image below are wet areas on the basement ceiling, none of which were visible to the naked eye.

Water at ceiling

I don’t come across many of these units in attics, so I occasionally need to refer back to the state code requirements for these units to make sure the condensate disposal system is properly installed.  I meant to put together a nice little user-friendly summary of the condensate requirements for the inspectors in my company, but I decided this might make for a good blog topic too, so here they are.

For this post, I'm basically paraphrasing section 307.2.3 of the 2015 Minnesota Mechanical Code, but I am leaving out some info, so read the real code section if you want to know every little detail.  This is the section that deals with condensate disposal for areas where damage could occur to the building if condensate leaked.  Like in an attic.

When this type of setup occurs, there are four options for dealing with condensate.  They're not listed in this order in the mechanical code though; I re-arranged the order because I think it makes more sense to read it this way.  Choose one of these four:

1.  A drain pan with a separate drain – A separate drain pan can sit underneath the unit, and this drain pan needs to have its own separate drain line. This pan needs to be at least 1-1/2” deep, and must be at least 3” wider in every dimension than the condenser unit.

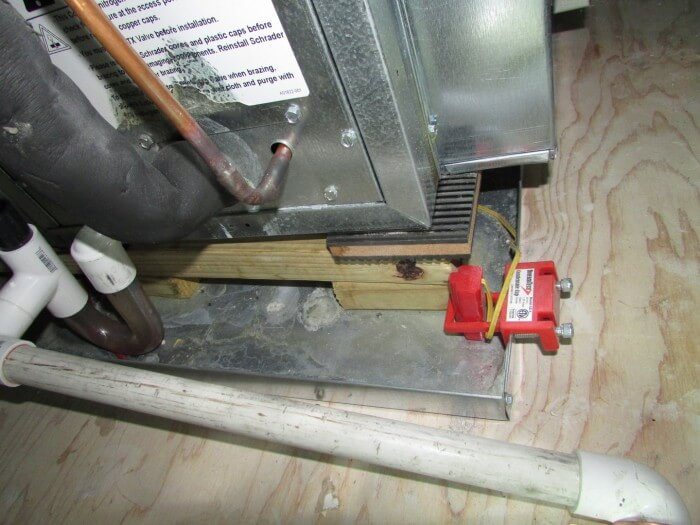

2.  A drain pan with a shutoff device – a pan with the same dimensions as listed above can be installed without a secondary drain, provided there’s a shutoff device installed that meets UL 508. I don’t own that standard and I don’t know what it says, but I’ve seen plenty of these shutoff devices, and they're pretty simple.  They sit inside the drain pan or they're mounted to the side of the drain pan.  It's that red device in the photo below.  That particular one is called the Condensate Cop.

Condensate Cop

If water fills up the pan, a float shuts off the air conditioner.  This type of device is quite simple and effective, and this is the most common method used in Minnesota attics.

3.  A shutoff device - a shutoff device for the air conditioner may be installed all by itself.  If this is done, it needs to be installed "in the primary drain line, the overflow drain line, or in the equipment supplied drain pan."

4.  A separate overflow drain – a separate overflow drain line can be connected to the secondary drain opening that is built into the equipment, but if this is done, it needs to drain to a conspicuous location. It can’t just drain to a floor drain or to the outdoors.  The purpose of this is to alert someone that water is coming out of some place that it shouldn’t, and there’s a problem.  Ideally, someone would go check it out and clear the clog in the clog that’s causing condensate to leak to an unusual location.

While it's not common to find air conditioners in attics here in Minnesota, I probably find the condensate disposal systems improperly installed at least half of the time.

Author: Reuben Saltzman, Structure Tech Home Inspections



Written By

Reuben is a second-generation home inspector with a passion for his work. He grew up remodeling homes and learning about carpentry since he was old enough to hold a hammer. Reuben grew up thinking he was going to be a school teacher because he enjoyed teaching others so much. In a sense, that’s a lot of what home inspections are about, so Reuben truly does what he loves. Sharlene has worked with Structure Tech since 2000 and Reuben has been contributing to her blog since 2008.

Related Posts

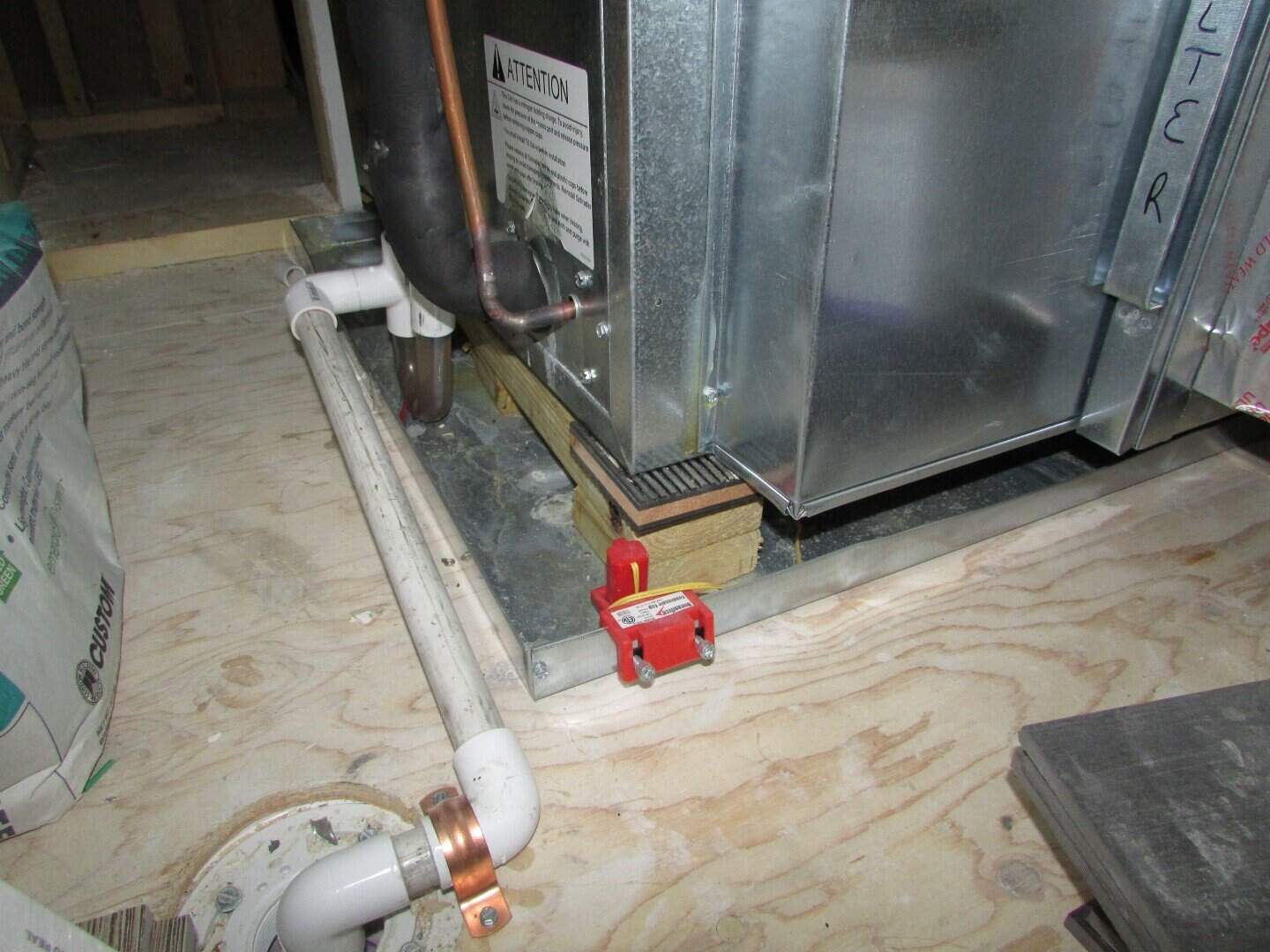

AC in attic
